Szczegóły Produktu:
Zapłata:
|

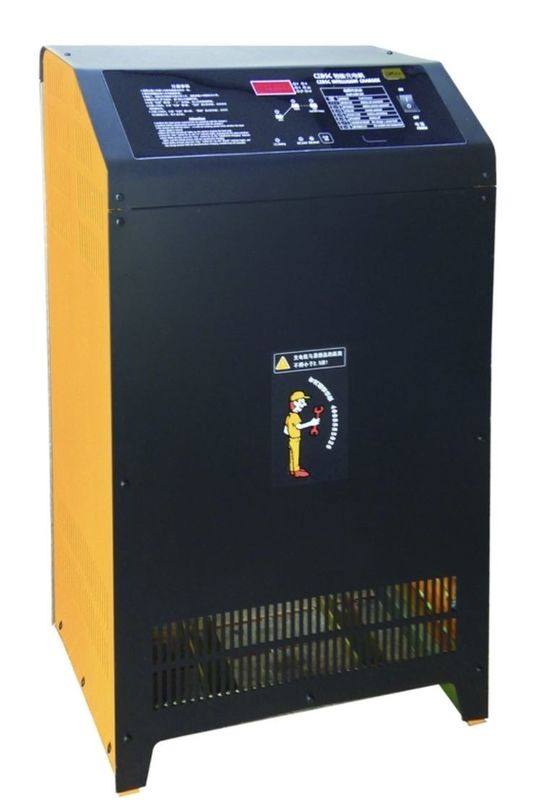

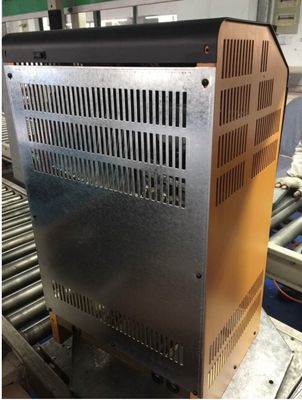

| Model: | CZB5C 48V 65A | Typ: | Ładowarka akumulatorów do wózków widłowych |
|---|---|---|---|
| Napięcie wyjściowe: | 48 V | Prąd wyjściowy: | 65A |
| Aplikacja: | Elektryczny wózek widłowy | Wymiar: | 466*361*785mm |
| Atrakcja: | ładowarka do akumulatorów do wózków widłowych, ładowarka do akumulatorów do samochodów ciężarowych |
Introduction
CZB5C series intelligent charger is most advanced intelligent charger in domestic China with unique advanced technology and super stable features. With the optimized Wa curves, with the application of microprocessor control technology and intelligent dynamic regulating charging technology, so the charging can penetrate into inside of battery plate to reach a complete charging and during the charging process, keep the battery in the state of micro scale bubbling to reduce the evaporating of electrolytic obviously to raise the charging efficiency and battery working life. The product has the feature of perfect function, smart outlook, new man-machine interface, high power factor, energy saving with complete range of type and specification,desktop and vertical stand cubics; it is an idea choice for wide range of customers.
Product Catalog
|
Specification |
Input current A |
Input power kVA |
Output current DC A |
Battery parameters |
outline dimension mm |
Net weight kg |
|||
|
@220V |
@380V |
@415V |
V |
Ah |
|||||
|
8.5h-11h |
|||||||||
|
D48V/55A |
10.8 |
6.3 |
5.7 |
4.1 |
55 |
48 |
320-440 |
466×361×785 |
62 |
|
D48V/65A |
12.8 |
7.4 |
6.8 |
4.9 |
65 |
48 |
375-520 |
466×361×785 |
65 |
|
D48V/80A |
15.7 |
9.1 |
8.3 |
6.0 |
80 |
48 |
465-640 |
466×361×785 |
68 |
|
D48V/100A |
19.7 |
11.4 |
10.4 |
7.5 |
100 |
48 |
580-800 |
526×360×882 |
86 |
|
D48V/120A |
23.6 |
13.7 |
12.5 |
9.0 |
120 |
48 |
700-960 |
526×360×882 |
95 |
|
D80V/65A |
21.3 |
12.3 |
11.3 |
8.1 |
65 |
80 |
375-520 |
526×360×882 |
87 |
|
D80V/70A |
23.0 |
13.3 |
12.2 |
8.8 |
70 |
80 |
405-560 |
526×360×882 |
87 |
|
D80V/80A |
26.2 |
15.2 |
13.9 |
10.0 |
80 |
80 |
465-640 |
526×360×882 |
89 |
|
D80V/100A |
32.8 |
19.0 |
17.4 |
12.5 |
100 |
80 |
580-800 |
526×360×882 |
95 |
|
D80V/120A |
39.4 |
22.8 |
20.9 |
15.0 |
120 |
80 |
700-960 |
526×360×882 |
107 |
Product Features
![]()
![]()
Q: What is the brand name of this forklift battery charger?
A: The brand name of this forklift battery charger is 48V 65A CZB5C Forklift Battery Charger.
Q: What is the model number of this forklift battery charger?
A: The model number of this forklift battery charger is CZB5C-48V 65A.
Q: Where is this forklift battery charger made?
A: This forklift battery charger is made in China.
Q: Does this forklift battery charger come with any certifications?
A: Yes, this forklift battery charger is CE and ISO9001 certified.
Q: What are the payment terms for this forklift battery charger?
A: The payment terms for this forklift battery charger are T/T.
