Product Description
|
Type:
|
Solid Tire Press Machine
|
Application:
|
Forklift Tire Replacement
|
|
Model:
|
TP160
|
Capacity:
|
160Tons
|
|
Weight:
|
2000kgs
|
Size:
|
L2100mm*W800mm*H2400mm
|
|
Brand:
|
LAKER
|
Motor:
|
7.5KW
|
|
Max. Tyre
|
20 Inches
|
Cylinder Max. Stroke
|
650mm
|
Introduction
Professional equipment for amending or replacing solid tires or OTR tires.
1.6MN solid tyre pressing machine is a special equipment for solid tire loading and unloading,
It can also apply to the tyres below 20 ".
This machine is a frame type structure.The hydraulic cylinder is located above the piston movement from top to bottom,the department .Platform, fixed on the piston rod and spherical pressure box, firm structure, is made of high-quality materials carefully assembled, so good performance. With the electric control box independent.
The hydraulic system of the machine consists of hydraulic system and hydraulic system of the auxiliary machine. This machine hydraulic system is composed of the high-pressure pump, solenoid valve, pressure relief valve, check valve, pressure indicator and oil cylinder.
High pressure relief valve is the oil pressure setting of high pressure pump, its maximum setting value is 21.5MPa.

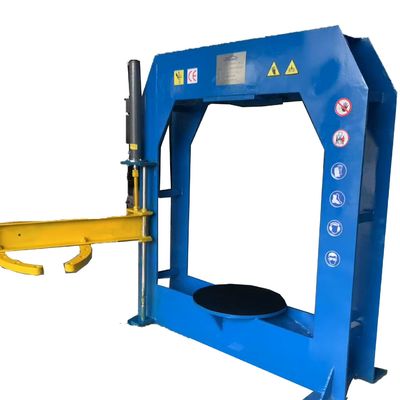

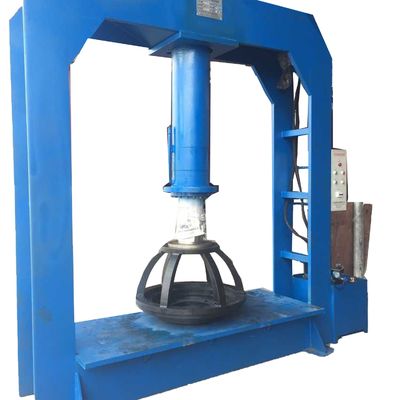

Product Display
Product Features
Heavy duty frame: The construction is welded by large-scale beam and channel beam.
High-grade hydraulic cylinder: The biston rod is grinded and hard-chromium plated.
Easy pull and press into the rims.
Voltage and phase customized according to different power supply.
Operator Safety
With the multiple features of our presses which are both standard and optional, we know that our hydraulic presses are not only good, they are operator friendly. We offer a front security guard which increases operator safety, important to us and to your business. Our strict adherence to quality standards ensures sound, safe and reliable machinery.
