Szczegóły Produktu:
Zapłata:
|

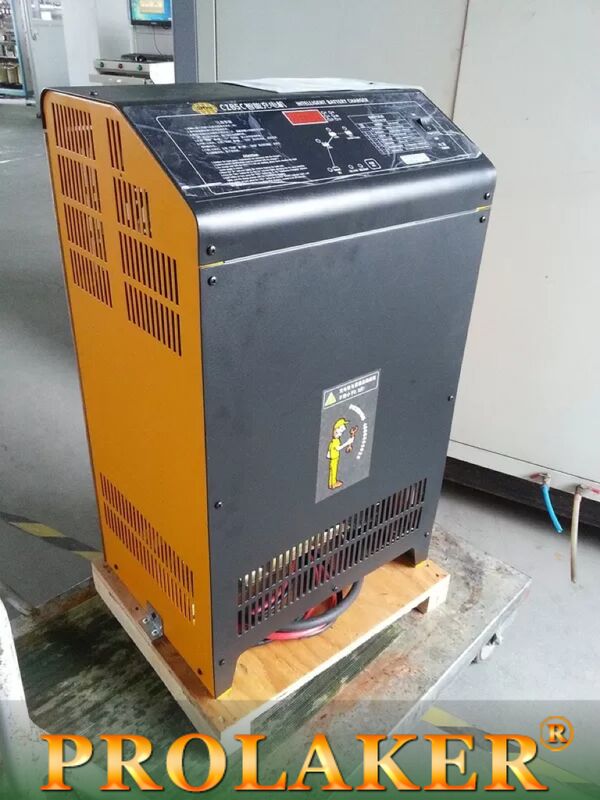

| Model: | CZB5C 80V/100A | Typ: | Ładowarka akumulatorów do wózków widłowych |
|---|---|---|---|
| Napięcie wyjściowe: | 80v | Prąd wyjściowy: | 100A |
| Marka: | LAKER | Technologia: | Prostownik sterowany silikonem |
| Parametr baterii: | 80V 500-800Ah | Rozmiar: | 526*360*882mm |
| Atrakcja: | ładowarka do wózka widłowego, ładowarka do akumulatora do ciężarówki |
Introduction
CZB5C series intelligent charger is most advanced intelligent charger in domestic China with unique advanced technology and super stable features. With the optimized Wa curves, with the application of microprocessor control technology and intelligent dynamic regulating charging technology, so the charging can penetrate into inside of battery plate to reach a complete charging and during the charging process, keep the battery in the state of micro scale bubbling to reduce the evaporating of electrolytic obviously to raise the charging efficiency and battery working life. The product has the feature of perfect function, smart outlook, new man-machine interface, high power factor, energy saving with complete range of type and specification,desktop and vertical stand cubics; it is an idea choice for wide range of customers.
Product Catalogs
| Specification | Input current A | Input power kVA |
Output current DC A |
Battery parameters | outline dimension mm |
Net weight kg |
|||
| @220V | @380V | @415V | V | Ah | |||||
| 8.5h-11h | |||||||||
| D48V/55A | 10.8 | 6.3 | 5.7 | 4.1 | 55 | 48 | 320-440 | 466×361×785 | 62 |
| D48V/65A | 12.8 | 7.4 | 6.8 | 4.9 | 65 | 48 | 375-520 | 466×361×785 | 65 |
| D48V/80A | 15.7 | 9.1 | 8.3 | 6.0 | 80 | 48 | 465-640 | 466×361×785 | 68 |
| D48V/100A | 19.7 | 11.4 | 10.4 | 7.5 | 100 | 48 | 580-800 | 526×360×882 | 86 |
| D48V/120A | 23.6 | 13.7 | 12.5 | 9.0 | 120 | 48 | 700-960 | 526×360×882 | 95 |
| D80V/65A | 21.3 | 12.3 | 11.3 | 8.1 | 65 | 80 | 375-520 | 526×360×882 | 87 |
| D80V/70A | 23.0 | 13.3 | 12.2 | 8.8 | 70 | 80 | 405-560 | 526×360×882 | 87 |
| D80V/80A | 26.2 | 15.2 | 13.9 | 10.0 | 80 | 80 | 465-640 | 526×360×882 | 89 |
| D80V/100A | 32.8 | 19.0 | 17.4 | 12.5 | 100 | 80 | 580-800 | 526×360×882 | 95 |
| D80V/120A | 39.4 | 22.8 | 20.9 | 15.0 | 120 | 80 | 700-960 | 526×360×882 | 107 |
Product Features
Our Service
We will provide the best service for user both during selling and after-sales. Welcome the customer to choose our products. Please, inform us the type and specification of battery, we can recommend the most suitable charger for you.
